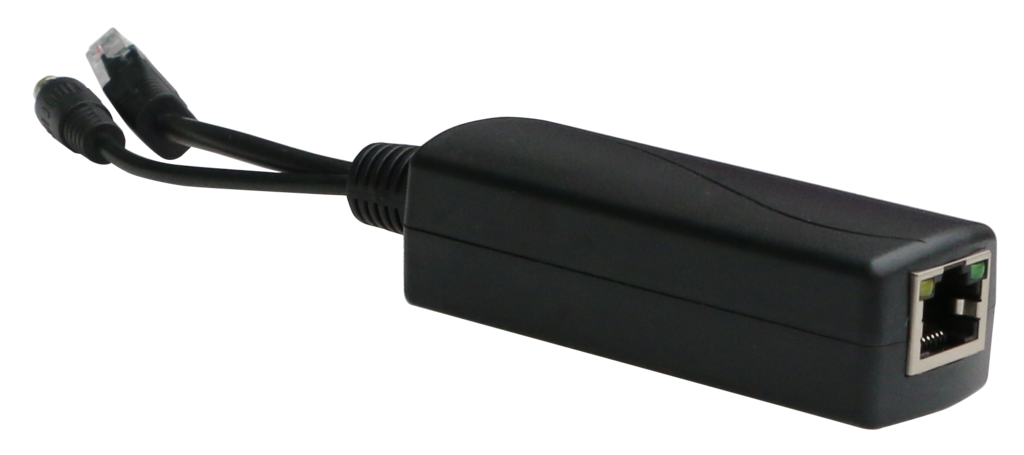

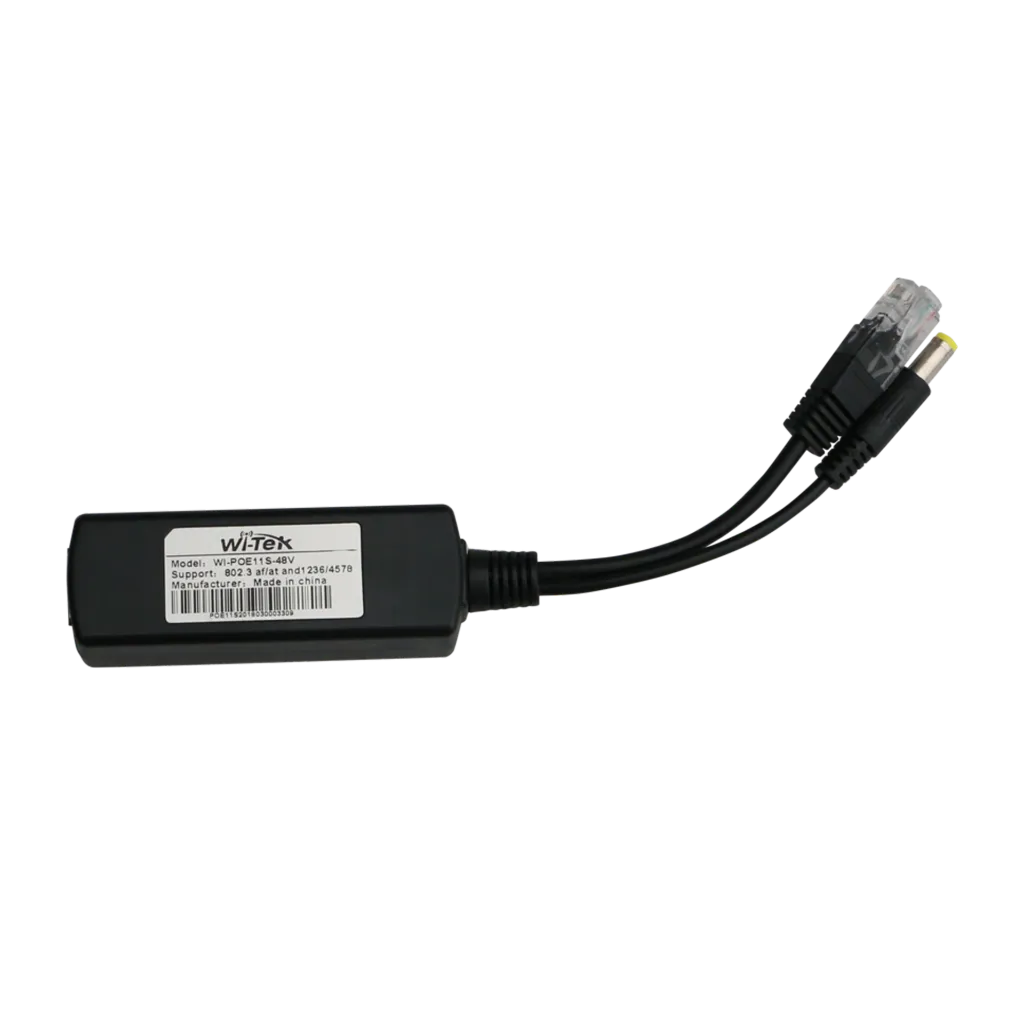

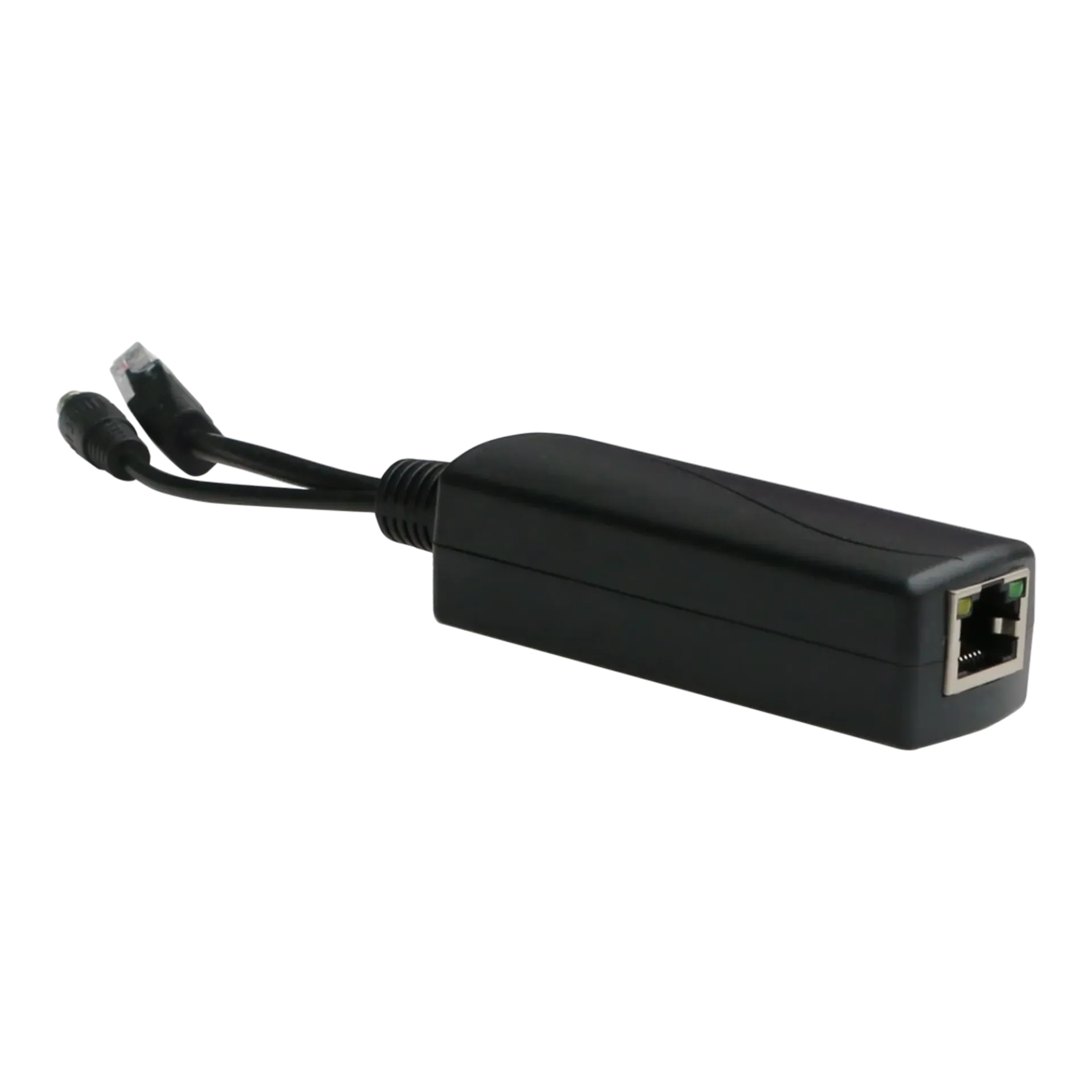

De PoE-splitter WI-POE11S-48V voldoet volledig aan de IEEE 802.3af/at-standaard en kan werken met alle IEEE 802.3af/at PoE-compatibele PSE (Power Supply Equipment) of PoE Switch of PoE Injector zoals WI-TEK's WI-POE31 -48V,
WI-POE51-48V of WI-POE55-60W, of een ander gelijkwaardig product, om 12V 1A gelijkstroom te leveren waar er geen stroomlijn of stopcontact is, waar u een apparaat zoals AP, IP-camera of IP-telefoon, enz. .
Kenmerken
HARDWARE FEATURES
Interface: 2 10/100Mbps RJ45 Ports
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
Fan Quantity: Fanless
PoE IN PIN: 4,5+ 7,8- and 1,2+ 3,6-
PoE Output PIN: 1,2+ 3,6-
DC Output: 12V 1A
Dimensions ( W x D x H ): 80*22*20mm
Backbound Bandwidth: 200Mbps
SOFTWARE
Transmission Method: Store-And-Forward
Advanced Functions:
Priority Function
Mac Address Auto-Learning And Auto-Aging
Store and forward
IEEE 802.3x flow control for
Full-duplex Mode
Backpressure for Half-duplex
Mode
OTHERS
Certification: CE, FCC, RoHS
Package Contents:
POE Switch
Electric Line
Guide Book/Warranty Card
Environment: Operating Temperature: -10°C~55°C
